gnuplot_test

gnuplot_test, an Octave code which call gnuplot(), which can read, convert, and display graphics information.

Ordinarily, gnuplot() is used interactively; that is, the user invokes the program, and then describes the plot to be created. The data for the plot is created either by a formula, or by reference to some data file created earlier.

It is often extremely important to be able to create graphical images of the results of an executable program. If the user is familiar with GNUPLOT, then the program can be modified to create a suitable data file, and, once the program has completed, the user can run GNUPLOT and use that data file to create a graph.

However, if the program is going to create the data file, it can just as easily create a file containing the appropriate commands to GNUPLOT that will create the desired image. In this way, the user can avoid having to recall the correct commands in the correct order to create the plot.

Thus, the program might create two files, called, perhaps data.txt and commands.txt. The command file would contain GNUPLOT commands, including one that refers to the data file itself. To create the graphics image, the user would simply type

        gnuplot < commands.txt


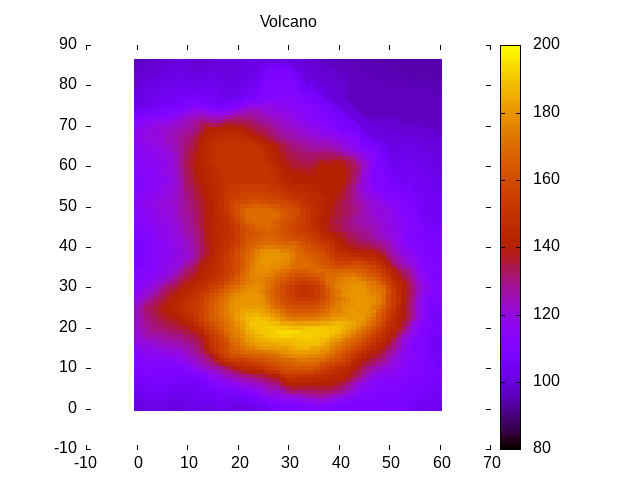

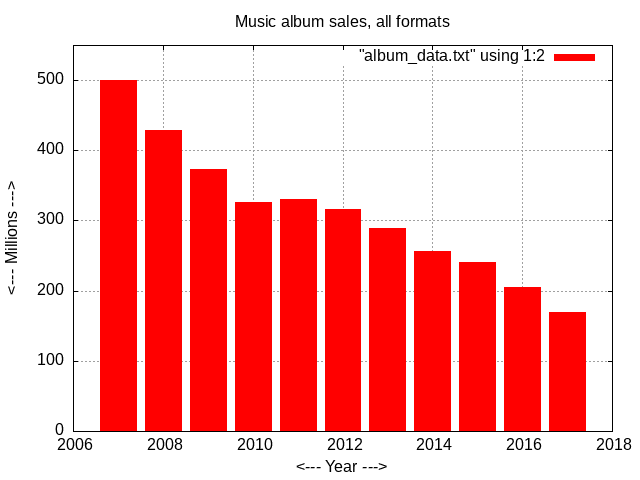

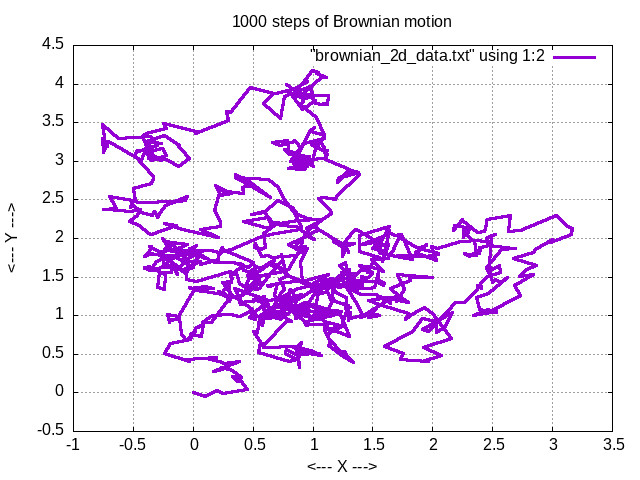

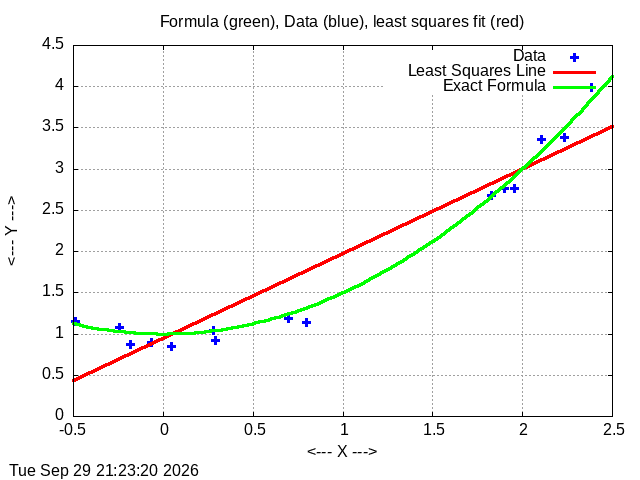

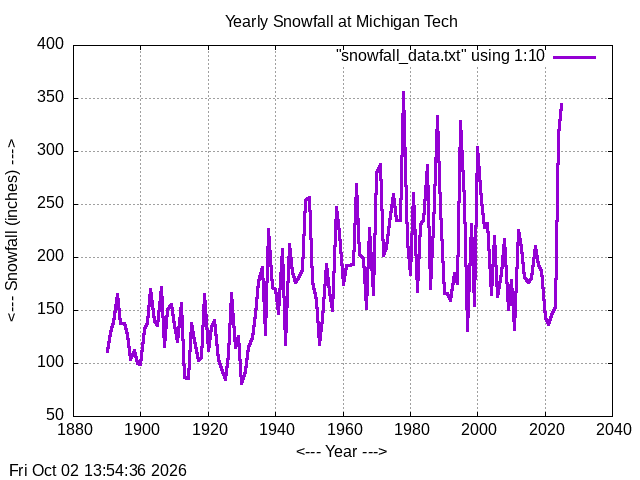

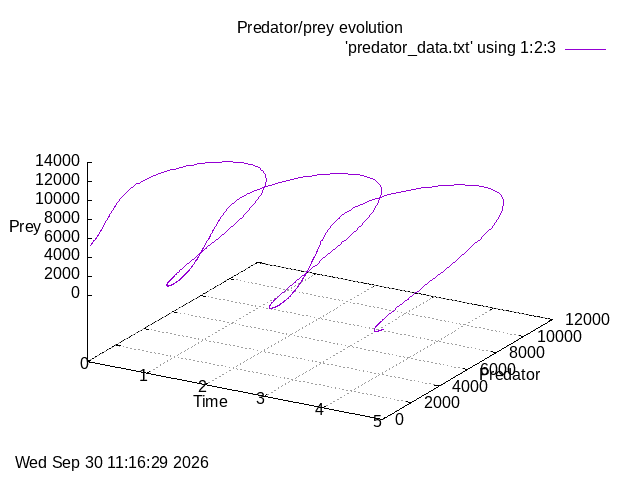

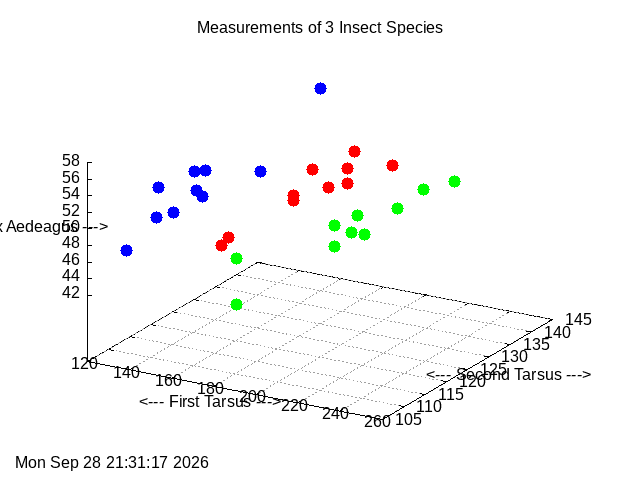

This directory includes some sample programs which carry out numerical calculations, creating data and command files that are used in exactly this way.

By the way, every time I run gnuplot, I get the obnoxious warning message

Could not find/open font when opening font "arial", using internal non-scalable font


export GDFONTPATH=/usr/share/fonts/liberation
export GNUPLOT_DEFAULT_GDFONT=LiberationSans-Regular


Licensing:

The computer code described and made available on this web page are distributed under the MIT license

Languages:

gnuplot_test is available in a non-language specific version and a C version and a C++ version and a Fortran90 version and a MATLAB version and an Octave version.

Related Data and Programs:

gpl_display, an Octave code which tries to read the data in a typical gnuplot GPL file, and display it in a more attractive way than gnuplot() is capable of.

Reference:

1. Philipp Janert,
   Gnuplot in Action: Understanding Data with Graphs,
   Manning, 2010,
   ISBN13: 978-1-933988-39-8,
   LC: QA276.4.J37.
2. Thomas Williams, Colin Kelley,
   gnuplot 4.4, An Interactive Plotting Program,
   The Free Software Foundation, 2010.
3. The GNUPLOT Website.

Source Code:

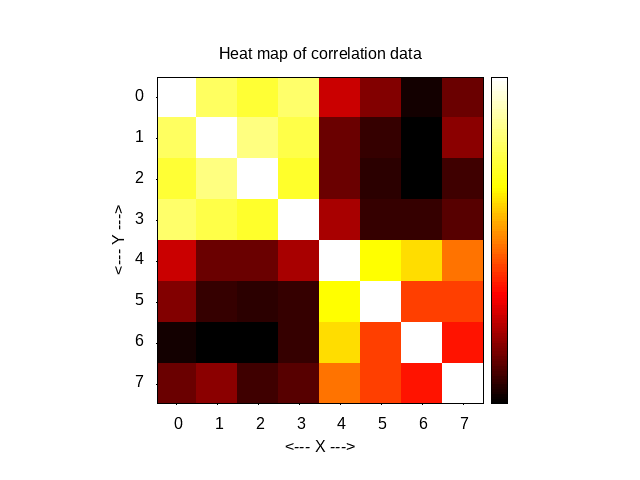

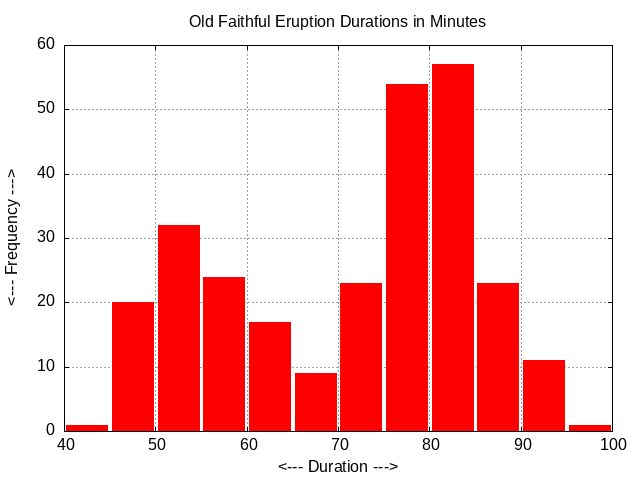

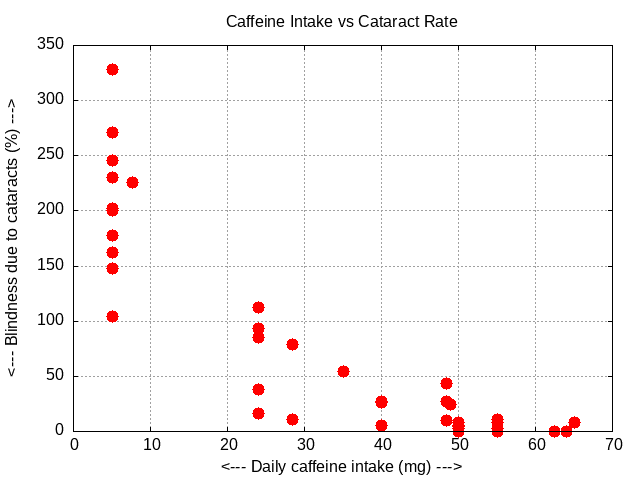

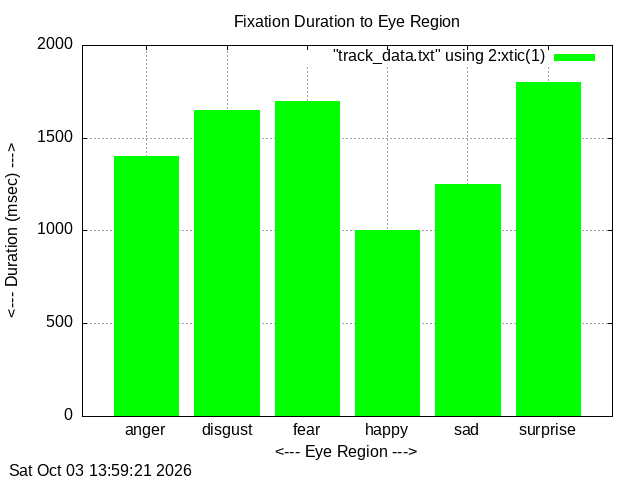

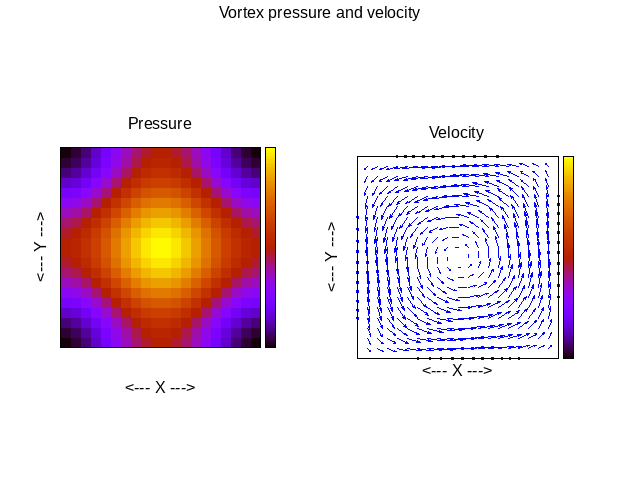

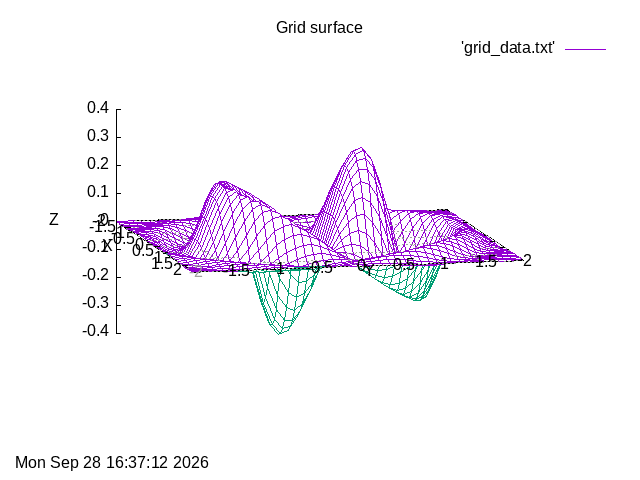

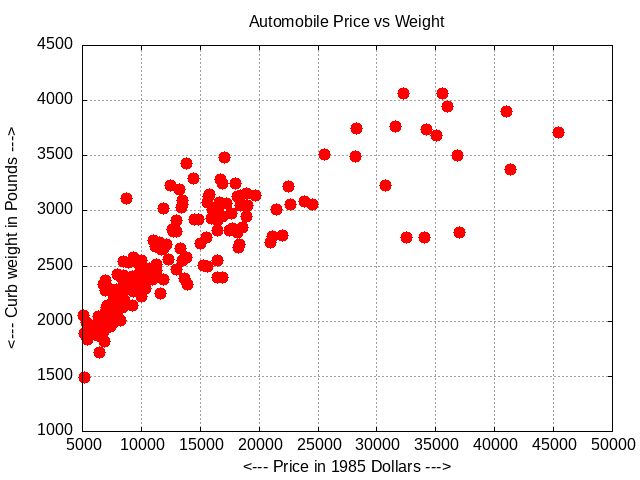

• gnuplot_test.m, calls all the tests;
• gnuplot_test.sh, runs all the tests;
• gnuplot_test.txt, the output file.

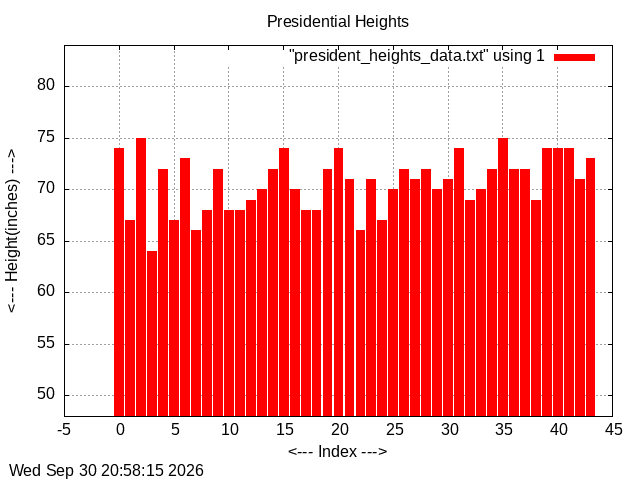

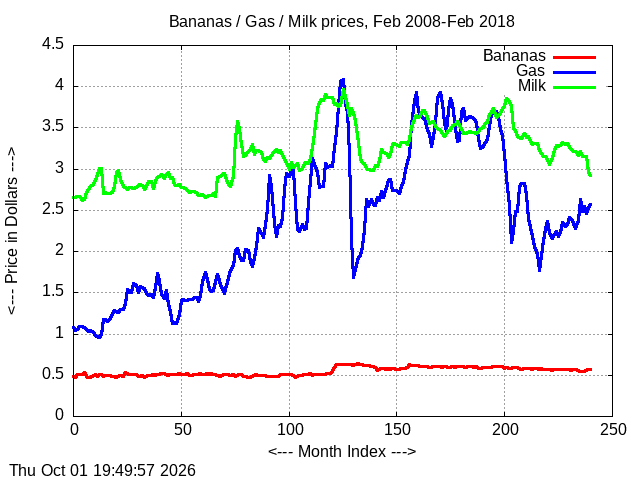

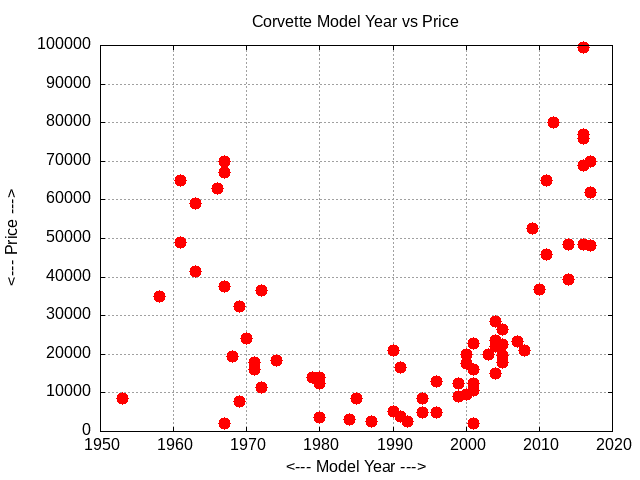

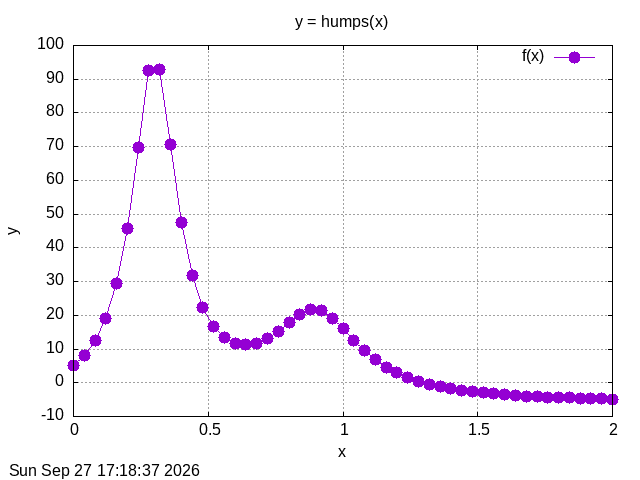

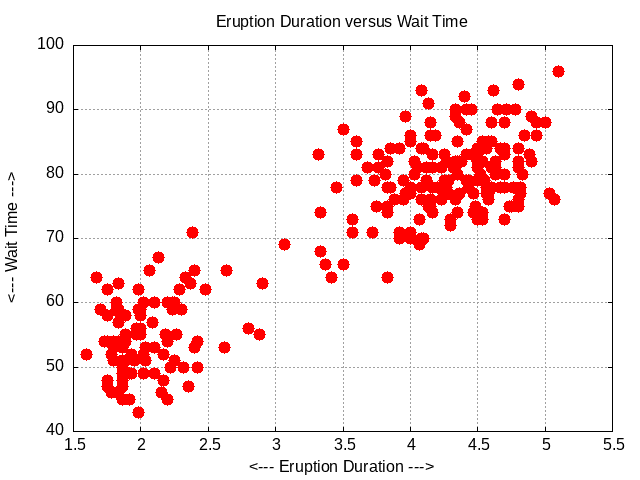

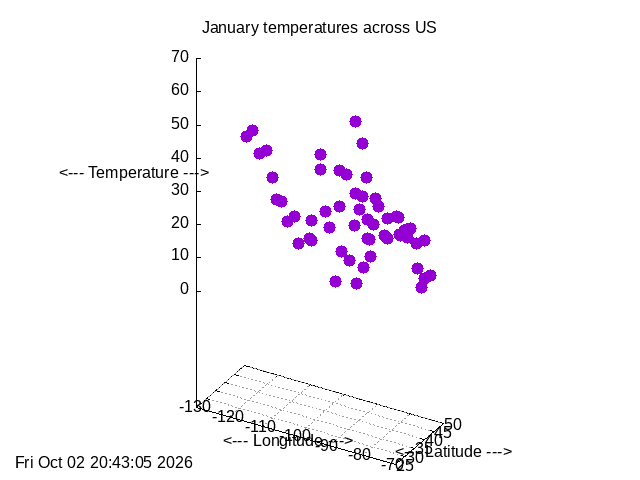

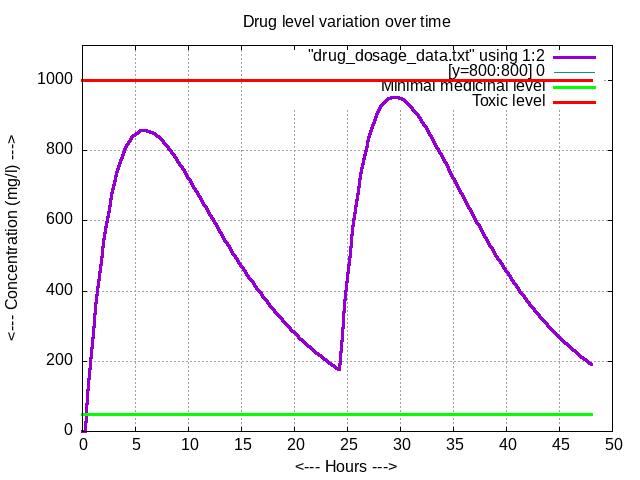

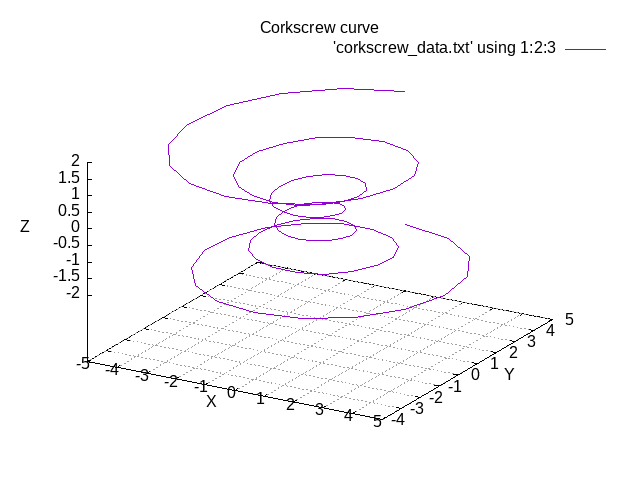

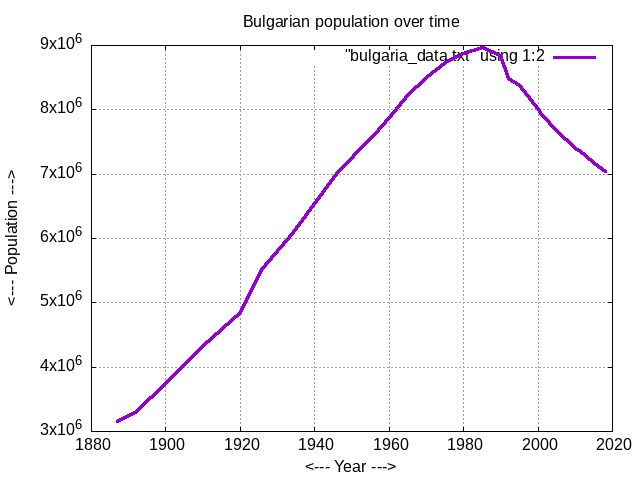

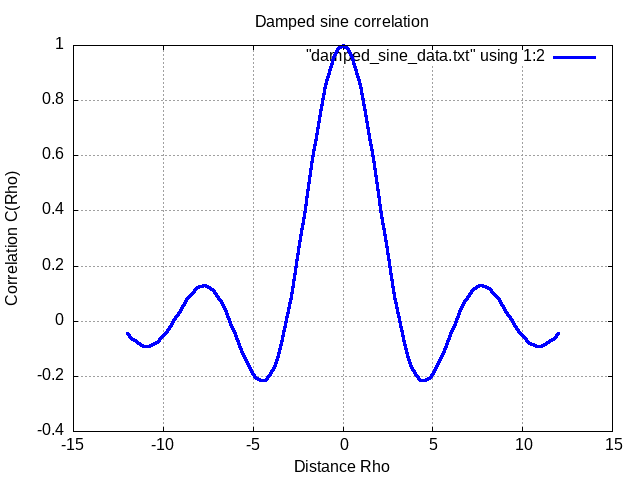

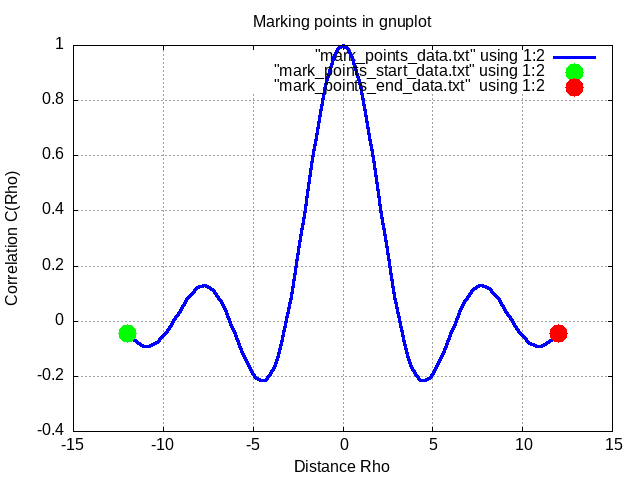

DAMPED_SINE evaluates the damped sine correlation function for a range of values of its argument. A plot of the function is desired.

• damped_sine.m, the source code.
• damped_sine.txt, the output file.
• damped_sine_data.txt, a file containing the data values.
• damped_sine_commands.txt, GNUPLOT commands that can create an image from the data file.
• damped_sine.png, an image of the data.

STRING_SIMULATION simulates the behavior of a string that obeys the wave equation. The shape of the string is to be plotted over successive times.

• string_simulation.m, the source code.
• string_simulation.txt, the output file.
• string_data.txt, a file containing the data values.
• string_commands.txt, GNUPLOT commands that can create an image from the data file.
• string.png, an image of the data.
