lbm

lbm, a Python code which demonstrates the Lattice Boltzmann Method, which uses a statistical particle model to simulate fluid flow. The resulting png images are animated using ImageMagick convert(). The original code is by Ferran Alia.

Licensing:

The information on this web page is distributed under the MIT license.

Languages:

lbm is available in a C++ version and a Python version.

Related Data and Programs:

imagemagick, examples which use imagemagick(), which creates, edits, composes or converts graphical information as stored in many different file formats. imagemagick() can resize, flip, mirror, rotate, distort, shear and transform images, adjust image colors, apply various special effects, or draw text, lines, polygons, ellipses and Bézier curves.

Reference:

• Ferran Alia,
  The fluid simulator that doesn't solve the fluid equations,
  Towards Data Science,
  https://towardsdatascience.com/the-fluid-simulator-that-doesnt-solve-the-fluid-equations/
  25 July 2026.

Source Code:

• lbm.py, the source code;
• lbm.sh, runs the code;
• lbm.txt, the output file;

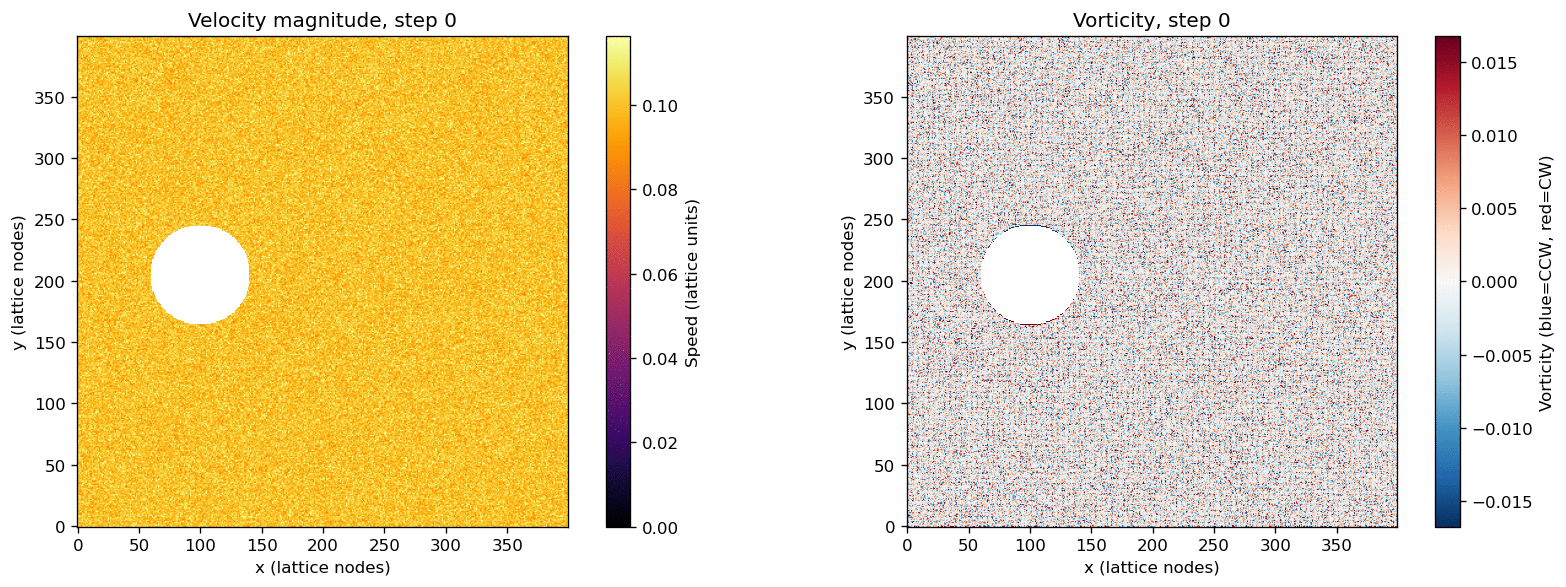

• lbm.gif, an animation of the solution created by ImageMagick convert();
