graphviz_test

graphviz_test, a Python code which calls graphiviz(), which displays representations of graphs.

The graphviz() and pydotplus() packages must be installed in order for these programs to work.

Licensing:

The computer code and data files made available on this web page are distributed under the MIT license

Source Code:

• graphviz_test.py, calls all the tests;
• graphviz_test.sh, runs all the tests;
• graphviz_test.txt, the output file;

• timestamp.py, prints the YMDHMS date as a timestamp.

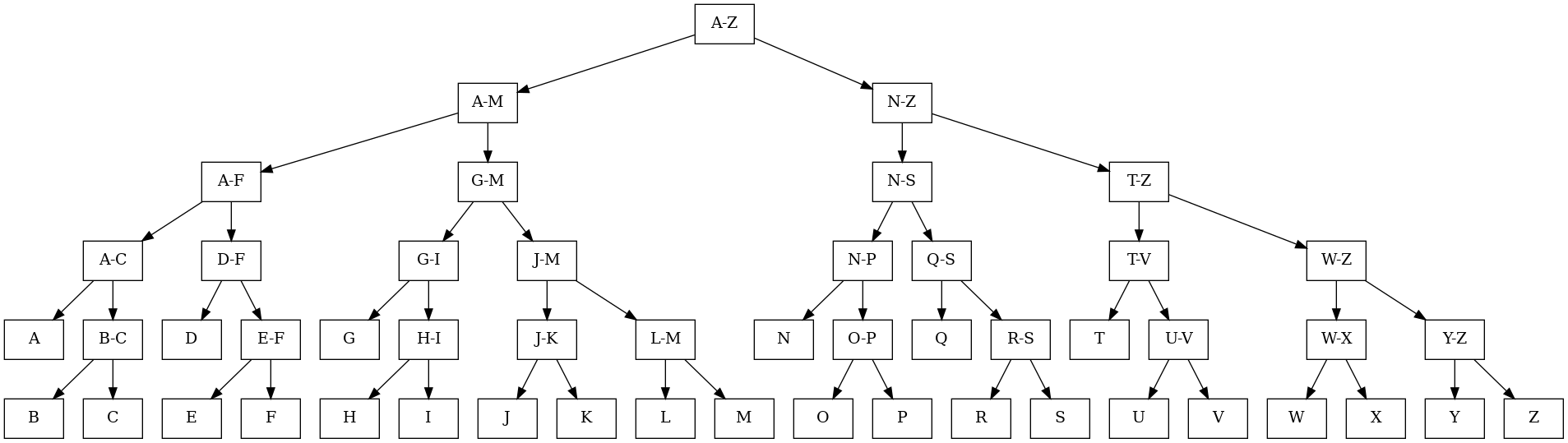

alphabet_binary_tree describes a binary tree that could be used to alphabetize letters.

• alphabet_binary_tree.py, sets up the graph and makes a plot.
• alphabet_binary_tree.dot, a dot version of the plot.
• alphabet_binary_tree.dot.png, the plot.

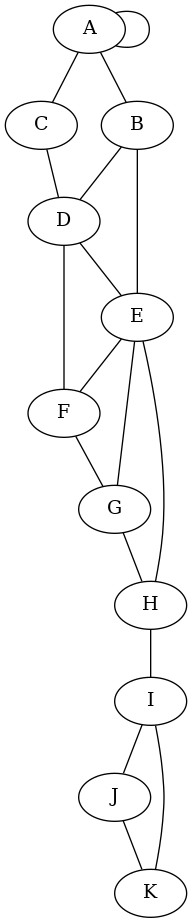

network_graph describes a graph as a set of edges, defined by pairs of nodes.

• network_graph.py, sets up the graph and makes a plot.
• network_graph.dot, a dot version of the plot.
• network_graph.dot.png, the plot.

web_digraph displays a set of directed connections as a digraph.

• web_digraph.py, sets up the graph and makes a plot.
• web_digraph.dot, a dot version of the plot.
• web_digraph.dot.png, the plot.
