xyzf_display_test

xyzf_display_test, an Octave code which calls xyzf_display(), which reads XYZF information containing a list of 3D point coordinates, and the indices of points that form faces, and displays a plot in the MATLAB graphics window.

Licensing:

The information on this web page is distributed under the MIT license.

Related Data and codes:

xyzf_display, an Octave code which reads XYZF information containing a list of 3D point coordinates, and the indices of points that form faces, and displays a plot in the MATLAB graphics window.

Source Code:

• xyzf_display_test.m calls all the tests.
• xyzf_display_test.sh runs all the tests.
• xyzf_display_test.txt the output file.

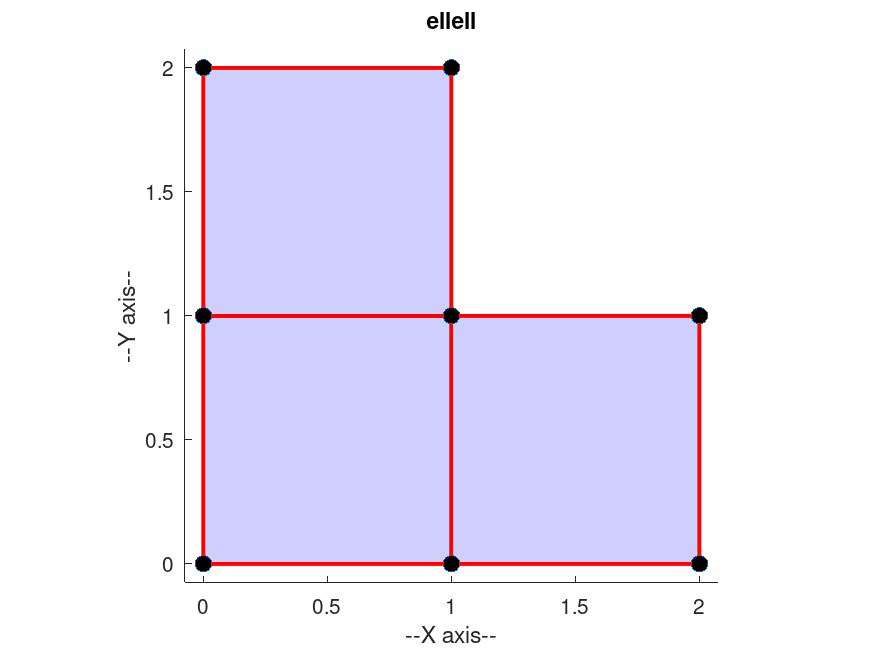

ELLELL is a shape that looks like an office building, with an L-shaped base and L-shaped profile, using 20 nodes and 18 rectangular faces.

• ellell.xyz, the node coordinates.
• ellell.xyzf, the faces.
• ellell.png, a PNG image.

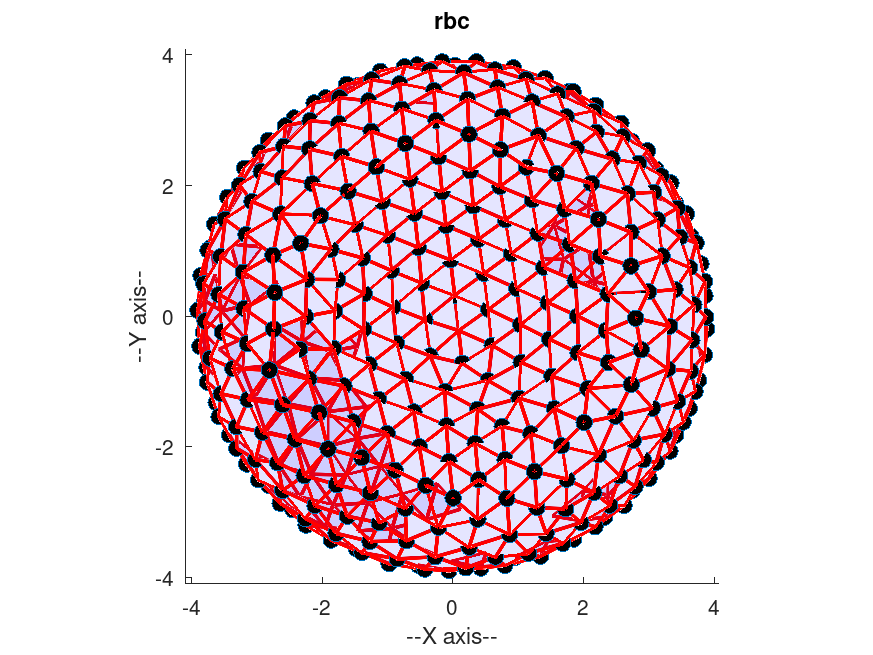

RBC approximates the shape of a red blood cell.

• rbc.xyz, the node coordinates.
• rbc.xyzf, the faces.
• rbc.png, a PNG image.

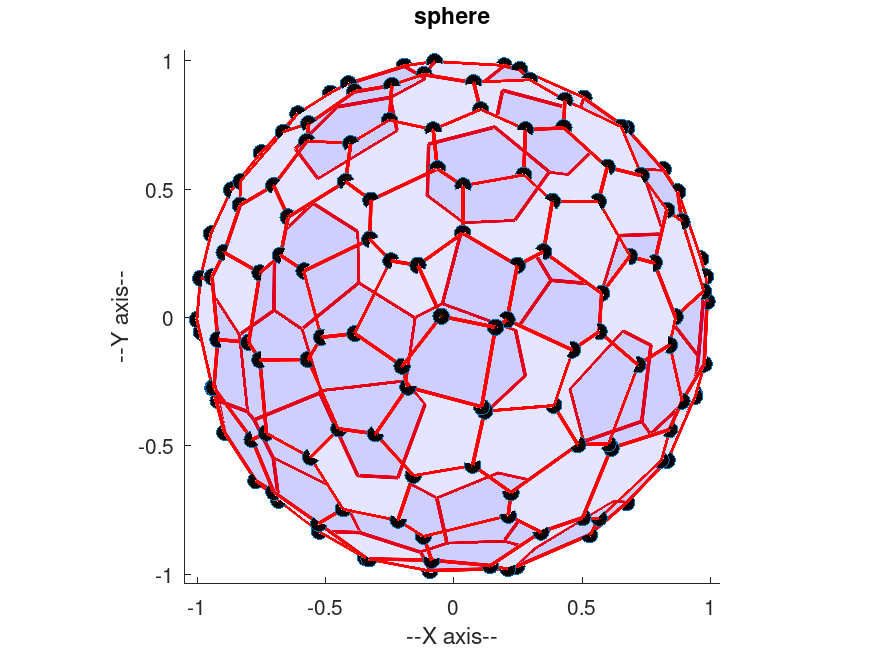

SPHERE is a surface that approximates a sphere.

• sphere.xyz, the node coordinates.
• sphere.xyzf, the faces.
• sphere.png, a PNG image.

TET1 is a tetrahedron.

• tet1.xyz, the node coordinates.
• tet1.xyzf, the faces.
• tet1.png, a PNG image.

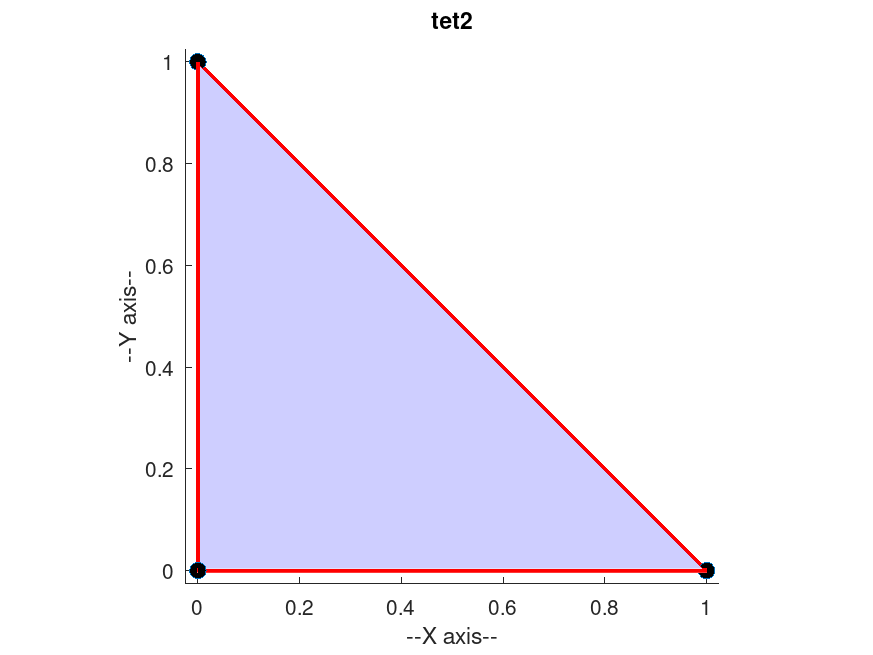

TET2 is a tetrahedron.

• tet2.xyz, the node coordinates.
• tet2.xyzf, the faces.
• tet2.png, a PNG image.
