heated_plate_test

heated_plate_test, a C code which calls heated_plate(), which solves the steady state heat equation in a 2D rectangular region, and is intended as a starting point for implementing an OpenMP parallel version.

Licensing:

The computer code and data files described and made available on this web page are distributed under the MIT license

Related Data and Programs:

heated_plate, a C code which solves the steady state heat equation in a 2D rectangular region, and is intended as a starting point for implementing an OpenMP parallel version.

Source Code:

• heated_plate_test.sh, runs the test.

The program has a built in grid of M = 500, N = 500. It is only necessary to alter these definitions and recompile in order to run the problem on a different grid. Here are the output files and solution files from two runs.

• output_500x500.txt the output from a run on a 500x500 grid.
• sol_500x500.txt the solution on a 500x500 grid.

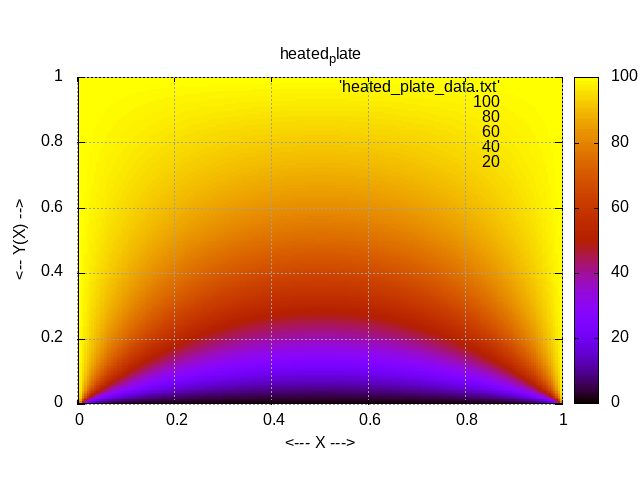

• sol_500x500.png a PNG image of the solution on a 500x500 grid.
